Fluorotech, Inc. specializes in the manufacturing and processing of fluoropolymer resins(Teflon®). Since 1997 we have successfully provided our customers with innovative solutions for their most critical applications. Our thin-film Teflon® materials offer proven chemical resistance, high temperature tolerance, superior flex-life, zero permeation, and high tensile strength.

Industries where our products are in use: Chemical Industry
Biomedical Industry
Analytical Industry
Aeronautical Industry

PRODUCTS

Zero-Perm T-1004 Available in thickness from 0.0025" to 0.0065". Manifest Zero permeability to gases, superior flex-life, and high tensile strength. This chemically resistant Teflon® material is ideal for applications where a thin-film diaphragm with zero permeation is required.

Flex-Life:
Temperature Tolerance:

Fluoropolymer:
> 20,000,000
205o C continuous service
225o C short durations
FEP

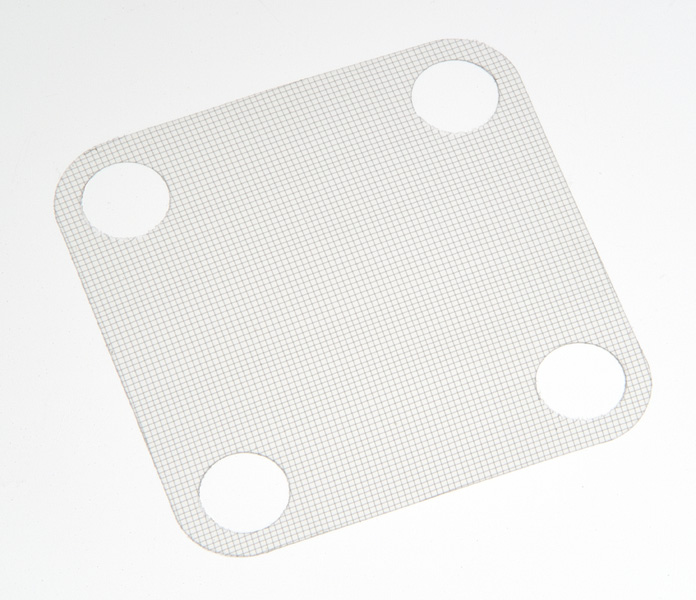

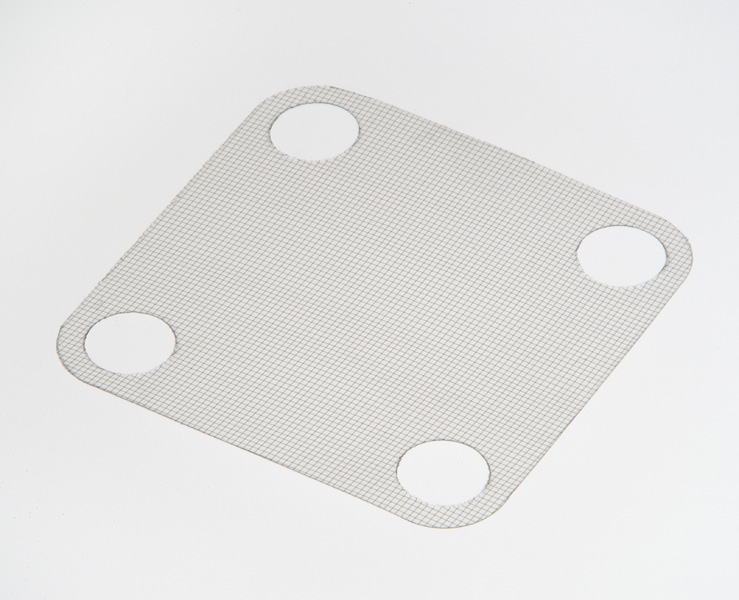

Reinforced Teflon Available in thickness from 0.0025" to 0.0065". Reinforced with a Teflon® impregnated steel cloth this thin-film diaphragm material manifest high tensile strength and excellent chemical resistance. This Teflon® material is ideal for high-temperature applications where diaphragm integrity is critical.

Flex-Life:
Temperature Tolerance:

Fluoropolymer:
> 2,500,000
205o C continuous service
225o C short durations
FEP

R&D Samples Available Upon Request


Reinforced Teflon
click to enlarge

click to enlarge

click to enlarge
